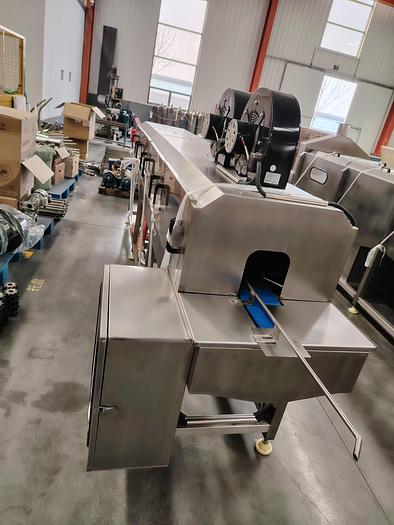

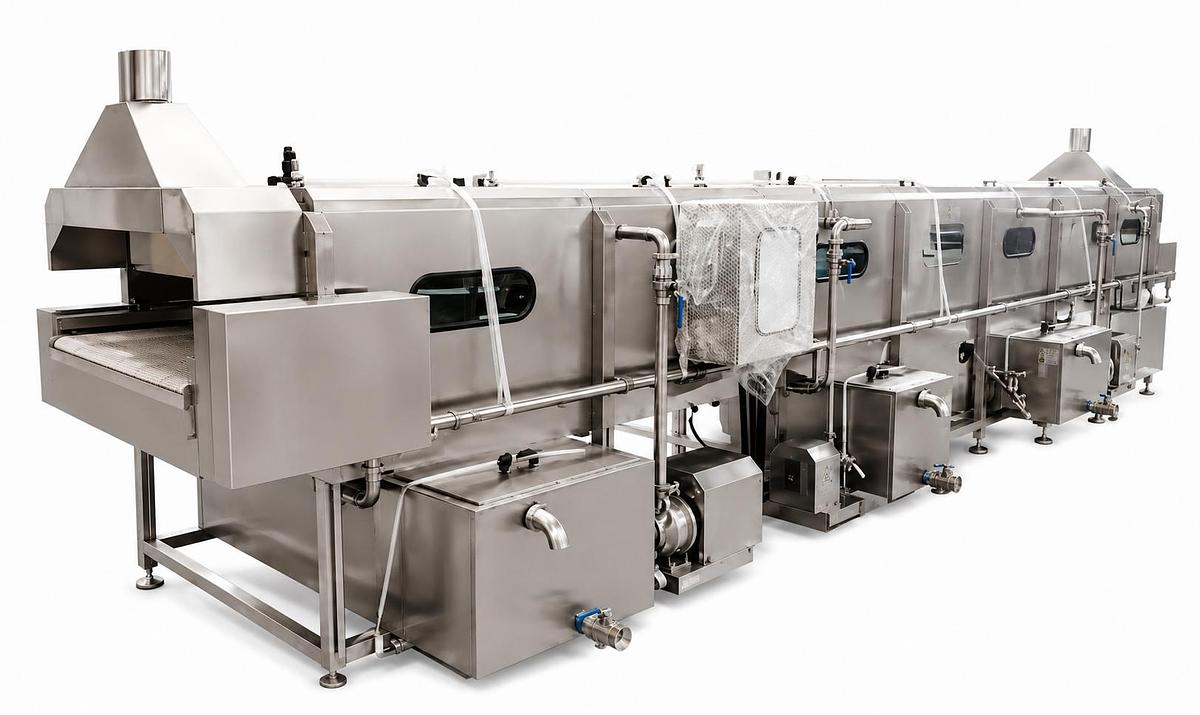

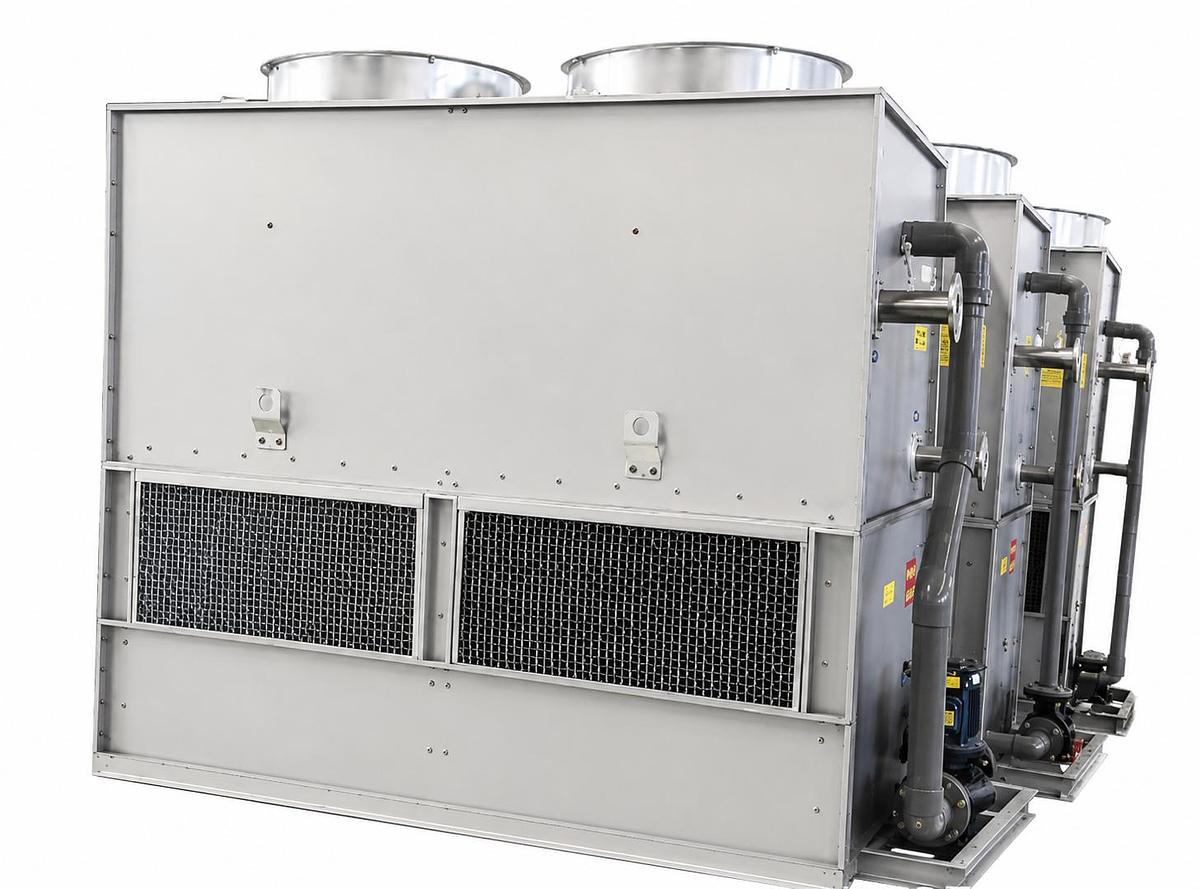

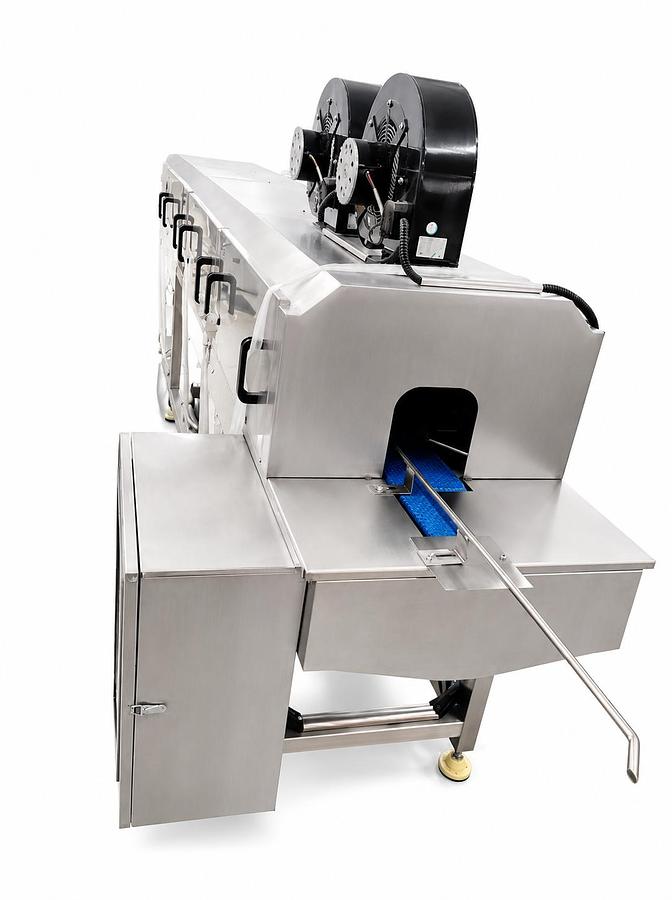

Automatic Bottle Cooling Tunnel

AUTOMATIC BOTTLE COOLING TUNNEL HIGH SPEED

INSTALLATION AND TRAINING ON SITE, WRITTEN WARRANTY, REPLACEMENT PARTS AND SERVICE CALLING CENTER 24/7.

Production Capacity: 6000 bottles per hour

(available in other production capacities)

10000 bottles per hour

12000 bottles per hour

15000 bottles per hour

18000 bottles per hour

24000 bottles per hour

30000 bottles per hour

36000 bottles per hour

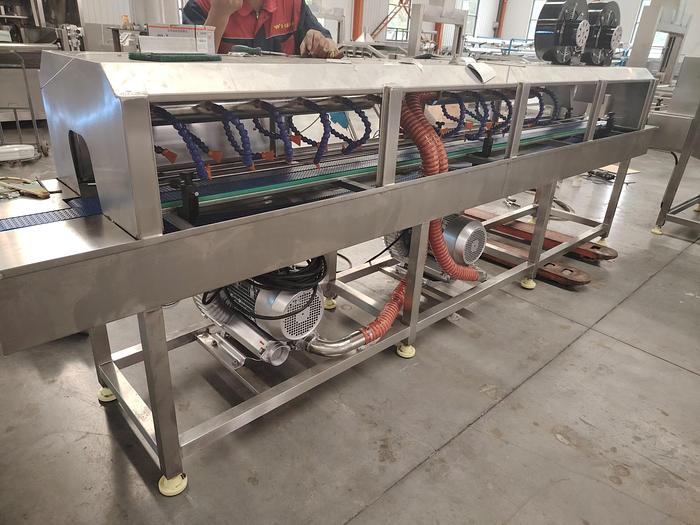

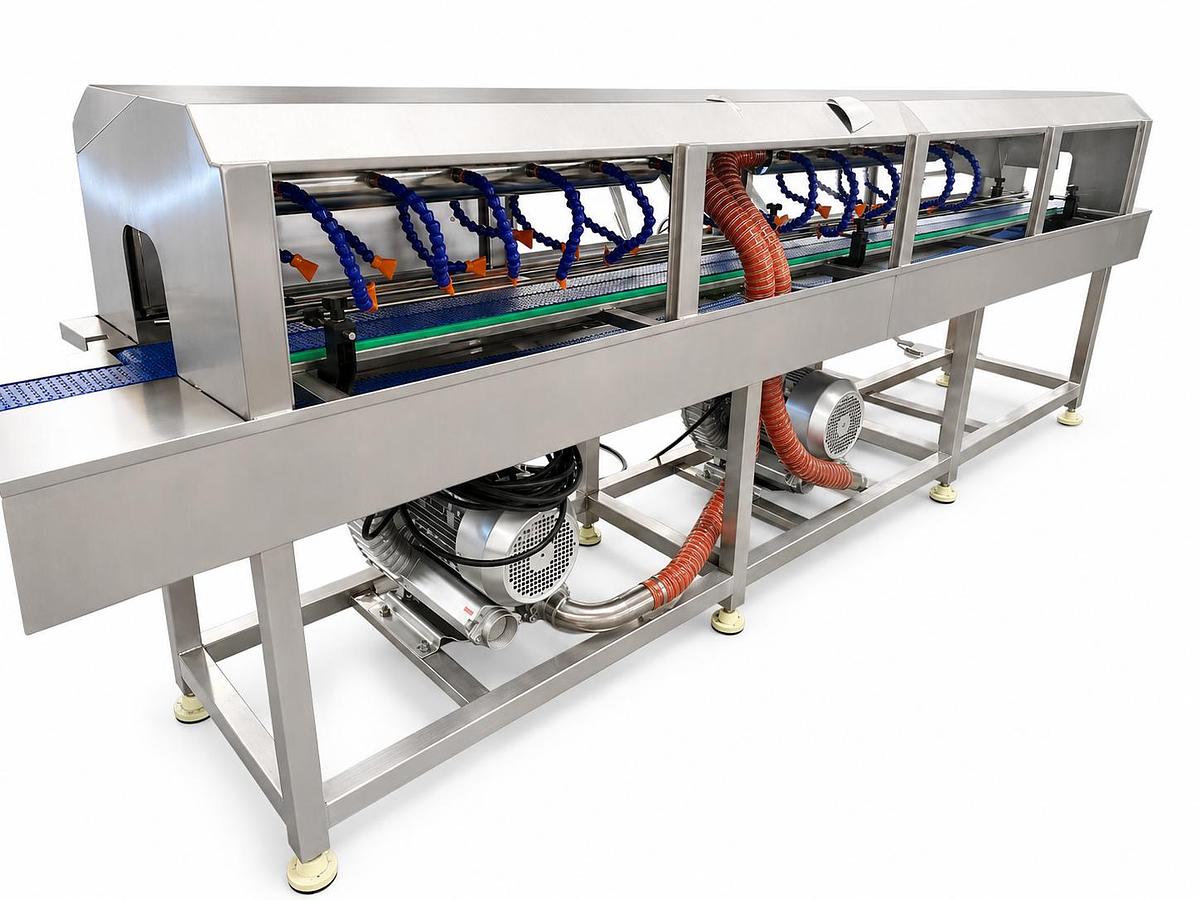

Spray Cooling System for polyester bottles, glass bottles and cans. It will lower the temperature after hot filling without changing the color, flavor and nutritional content of the beverage and to facilitate the labeling process by ensuring the containers can be clean and dry.

Entry temperature: 85 degrees Fahrenheit- 190.4 degrees Fahrenheit

Exit Temperature: 100.4 degrees Fahrenheit-107.6 degrees Fahrenheit

Number of Water Tanks: Four Zones and three slots

Optimum Sterilization Time: 16.5 minutes

Optimum Sterilization Area: 8m2

Frame Structure: AIS304 Stainless Steel

Thickness: 3mm

Water Tank and Top beam plate thickness: 2mm

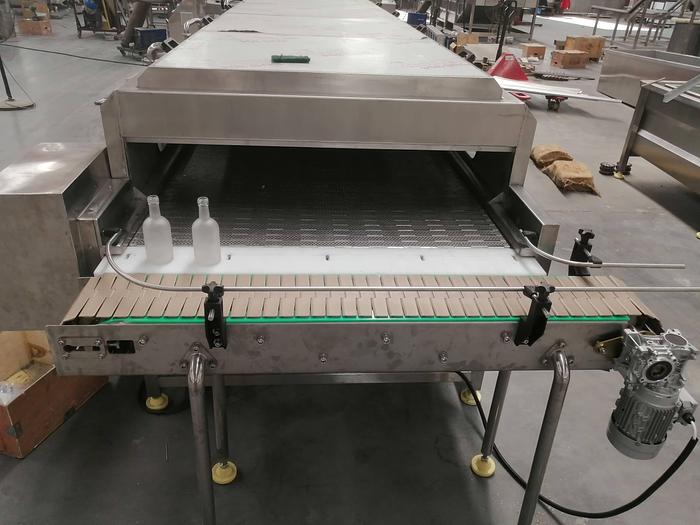

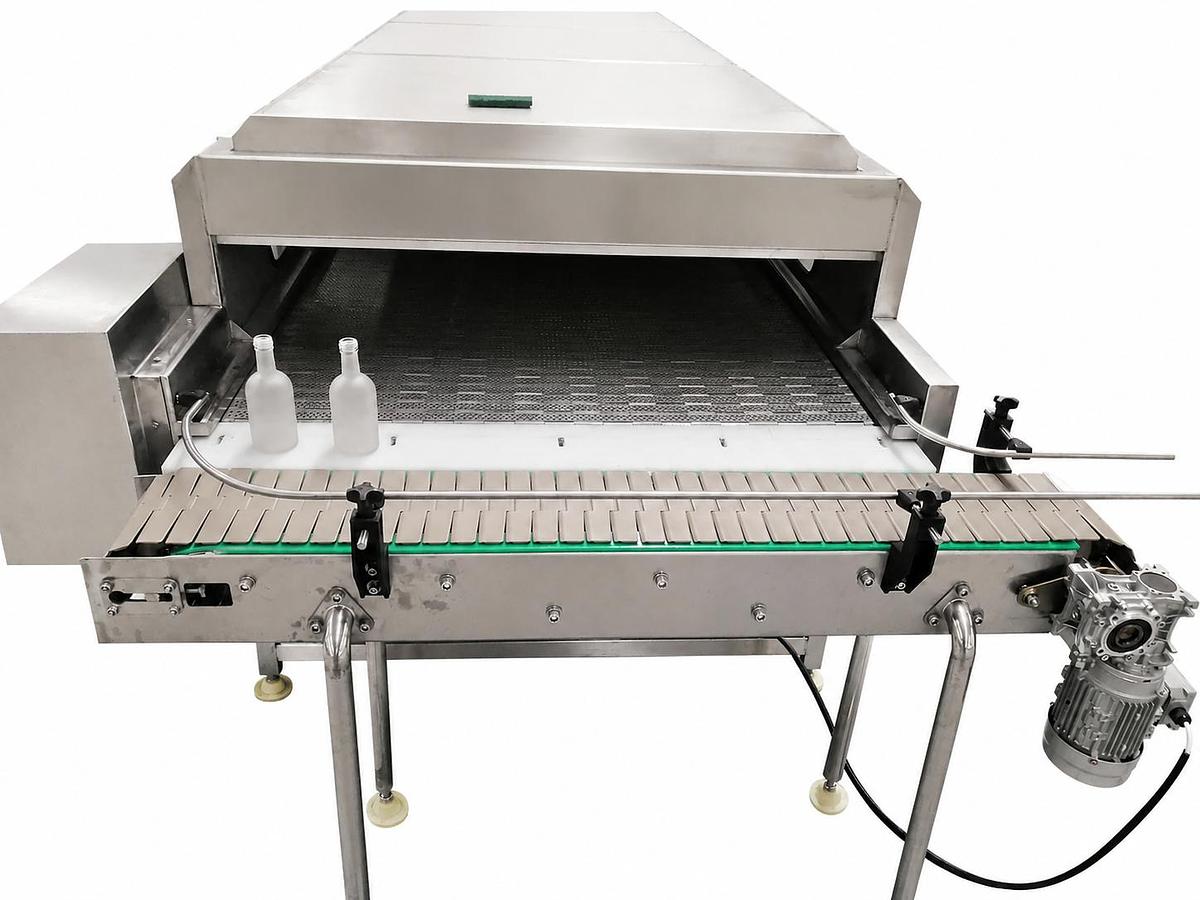

Chain: Polymer wear-resistant plastic mesh chain

Water Pump

PLC Control System

Touch Screen

FOR MORE INFORMATION, PLEASE SEND US AN EMAIL AT sales@dependableequipments.com or call us at 305-200-7807.
